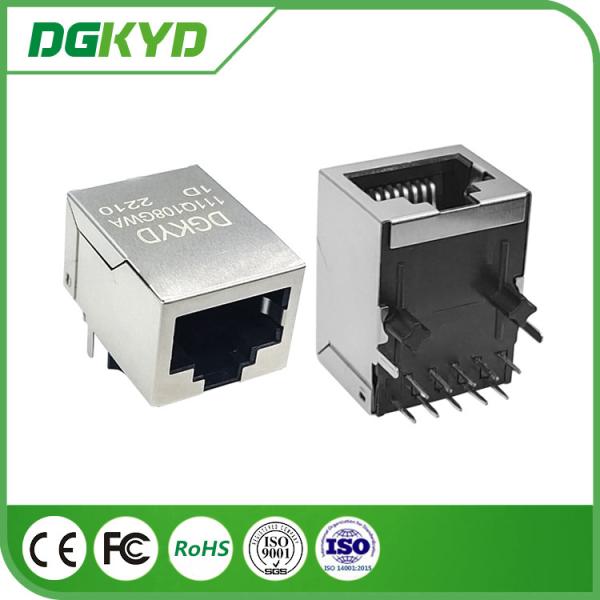

10/100/1000 Base-T 10P8C Single Port RJ45 Magnetic Jack Without LED

Name: 101001000 BaseT 10P8C Single Port RJ45 Magnetic Jack Without LED
Brand: DGKYD
Price: 1 USD

Quality 10/100/1000 Base-T 10P8C Single Port RJ45 Magnetic Jack Without LED wholesale

Brand Name : DGKYD

Model Number : DGKYD111Q108GWA1D

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : Negotiation

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 10 days

Packaging Details : 560Tray in Carton

Product type : RJ45 1000M Connector

Encapsulation method : doubleIn-line Package

PCB Mount Style : DIP

Shape : rectangle

Shield : brass

Number of Positions/Contacts : 10p8c (RJ45, Ethernet)

Number of Ports : Tap down

Dimension (mm) : 16* 21.1*13.45mm

Contact Plating : 6u Glod Plating

Operating temperature : - 40 ℃ ~ 85 ℃

Storage temperature : - 40 ℃ ~ 85 ℃

Contact Now

Single Port RJ45 Connector 10/100/1000 Base-T 10P8C RJ45 Magnetic Jacks Network Connector Without Led

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: 0 ℃ - 70 ℃,

Storage temperature: - 40 ℃ - 85 ℃

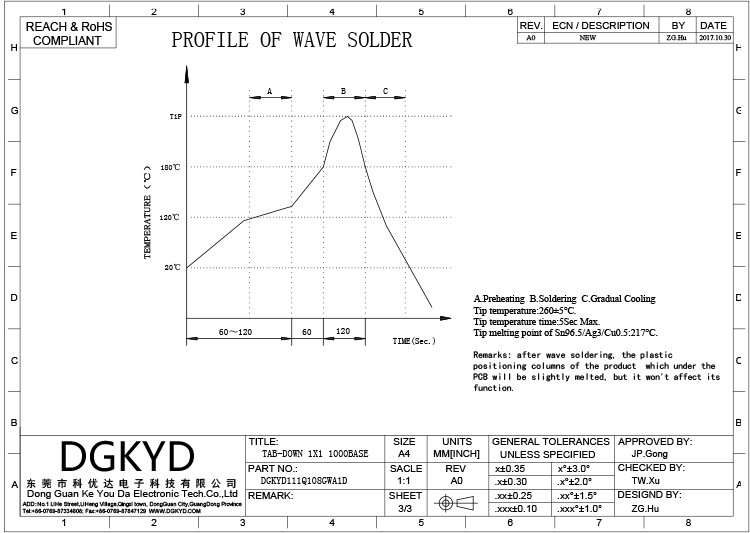

Lead free soldering: wave soldering height up to 265 ℃

Parameters

Part Number	DGKYD111Q108GWA1D	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-Down
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Multiple Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

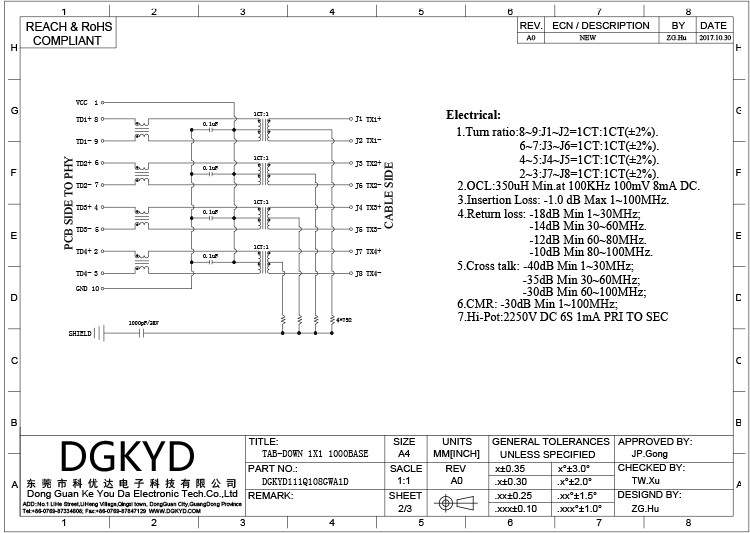

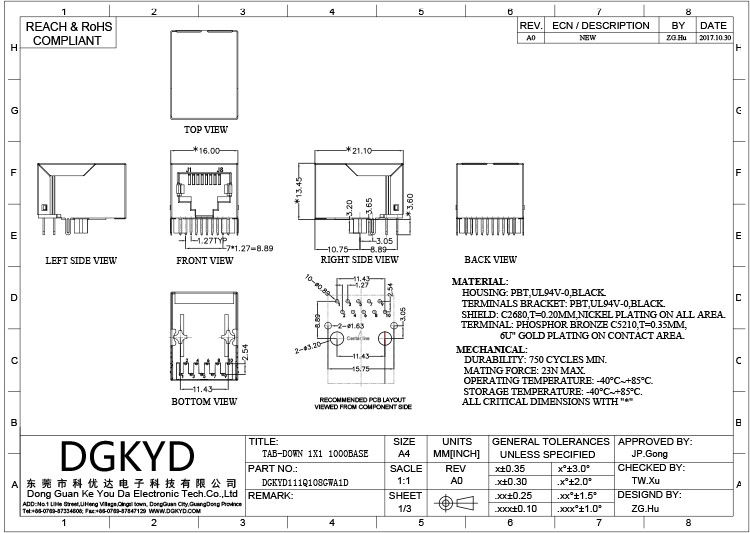

Drawings

10/100/1000 Base-T 10P8C Single Port RJ45 Magnetic Jack Without LED

Product Tags:

Single Port RJ45 Magnetic Jack

10P8C RJ45 Magnetic Jack

Single Port RJ45 Connector Without LED

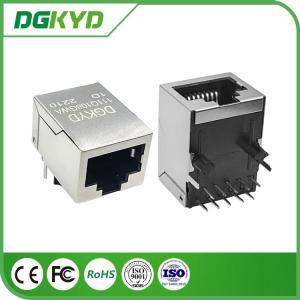

10/100/1000 Base-T 10P8C Single Port RJ45 Magnetic Jack Without LED Images
